Igus Introduces 'Slide and Roll': Drylin W Hybrid Bearings

The combination of linear plain bearings with supporting rollers offers low driving forces with no requirement for lubrication.


Bangalore, Karnataka -- (SBWIRE) -- 07/21/2014 -- Wherever manual sliding applications are situated, for example on machine sliding guards, safety doors, control panels, and theatre stage actuation. Quiet operation without the requirement for lubrication is entirely possible with the drylin W hybrid system.

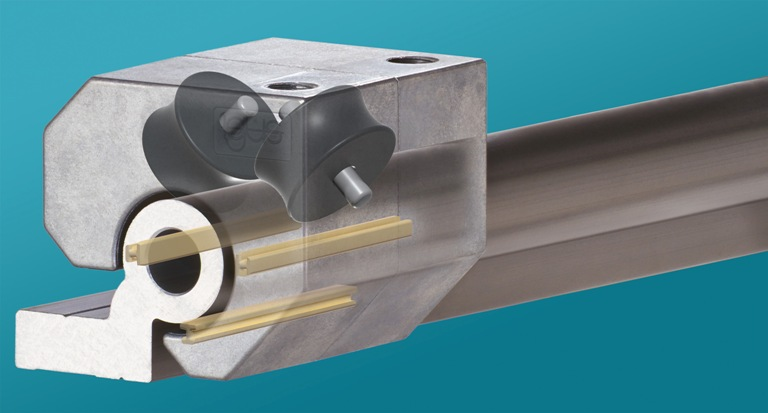

The hybrid carriage from igus on the drylin W rail profile, made from hard anodised aluminium, utilises the advantages of sliding and rolling ,since they are lubrication-free and can simultaneously move larger loads without excessive driving forces. This space-saving technology with only one guide rail is, for example, suitable for the adjustment of sliding doors or enclosures and allows for maximum freedom at the design process. They enable an easy manual adjustment with very quiet running.

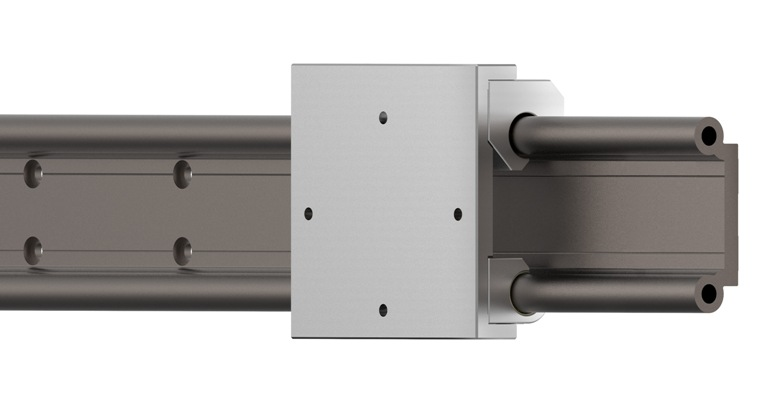

The drylin W hybrid carriage is also available in a compact design with a length of only 90 millimetres. Thus, designers can minimise the impact of introducing a linear slide by using the hybrid system. At the same time, the overall structure remains inconspicuous, even here, since it does not require a second guide as support. As in the case of the larger version, the roller guide is secured on the rail, eliminating the risk of carriages leaving the rail.

For more information please visit: http://www.igus.in/wpck/7030/DryLin_W_Hybridlager?C=IN&L=en

Versatile applications through freedom from lubricants
Like all plain bearing products from igus, the drylin W hybrid carriage does not require lubricating. This makes them, on the one hand, suitable for applications in the food and packaging sector, as there is no grease or oil to contaminate the food. On the other hand, they can also easily be used in adverse environments, such as in machine tools. No dirt or dust particles can accumulate on the bearings, which could hinder long-term operations. More sizes will be available soon.

About igus India
igus® operations in India started in the year 1998 with head quarters in Bangalore. igus offers widest range of products that includes polymer bearings, igubal® spherical bearings, DryLin® linear bearings & guide systems enable them to serve the whole industrial establishments in India from a small work shop to huge industrial establishments.
